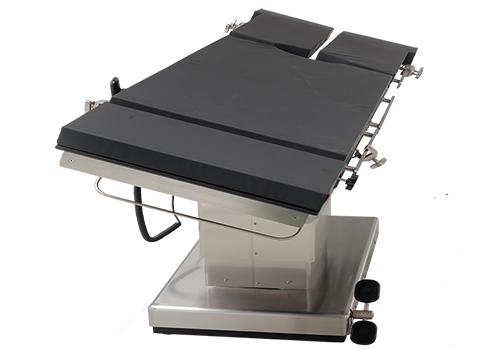

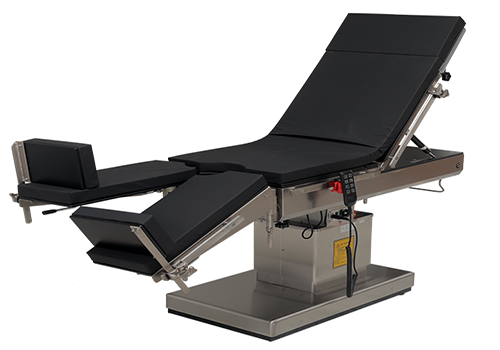

Electric Operating Table

Model: G-D2-4-OT9

Size(mm): 2000*520*700

Function: G-D2-4-OT9 is applied for various operating in medical units.

PRODUCT DETAILS

Electric Operating Table features:


- The tabletop adopts high quality of carbon plastic plate, and it can slide, which is convenient for C arm exam and X-ray photography.

- The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.

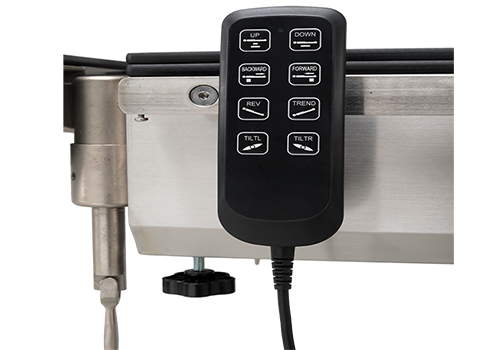

- Hand held controller and panel controller are available to control various movements. Self-locking function is provided to avoid false triggering.

- One press to " ∧ " or " ∨ ".

- All system from HOERBIGER.

- AC and DC can use at the same time. It has the function of auto-restoration.

- Quality stainless steel 304 is used for table support, base plate, column shield and rails on both sides of the table and other accessories.

- Electric braking device, convenient for shifting the table.

- The head board and leg plate are controlled by imported gas spring. Leg plate is split and detachable.


Electric Operating Table accessories:


- A Pair of Shoulder Waist Support;

- A Pair of Arm Support;

- A Pair of Leg Plate;

- A Screen.


Electric Operating Table Technical Data

Model

G-D2-4-OT9

Electric Operating Table Length

2000±100mm

Electric Operating Table Width

520±20mm

Electric Operating Table Height Adjustment

(700-1150) ±50 mm

Tilt (Left/Right)

≥20°/≥20°

Trendelenburg / Rev-Trend

≥28°/≥28°

Head Board up/down

≥50°/≥90°

Back Board up/down

≥75°/≥50°

Waist board lifting

100±20mm

Leg Board up/down/outwards

≥10°/≥90°/≥180°

Lumbar upper/lower corner

≤150°/≤110°

Horizontal and longitudinal movement

300±30mm

Main Voltage AV

220V±22V, 50±1Hz

Input Power VA

300±10%
