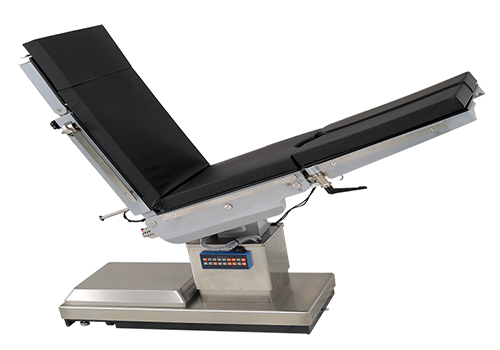

Electro-hydraulic Operating Table
Model: G-D2-1-OT3
Size(mm): 2030*540*1000
Function: Electro-hydraulic Operating Table
E-mail: info@galbinotech.com
Model: G-D2-1-OT3
Size(mm): 2030*540*1000
Function: Electro-hydraulic Operating Table
With
classic five parts design, Galbino Electro-hydraulic
Operating Table (G-D2-1-OT3) can answer
most surgeries needs. It is high cost-effective ratio product in operation
table market.
Electro-hydraulic Operating Table standard configuration：
- Germany
gas spring (STABILUS) for leg board movement.

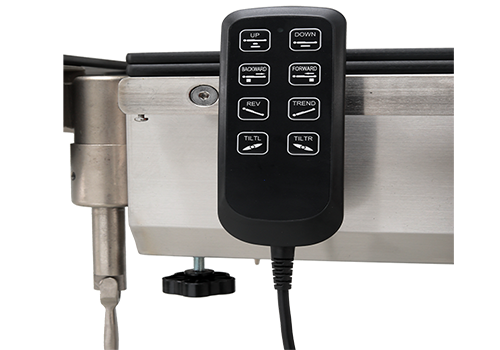

- Dual-column control system.
- Unique hydraulic brake caster system.
- One-key to V and anti-V position; one-key to
reset.
- High quality hydraulic system.
Electro-hydraulic Operating Table Technical Data
Model
G-D2-1-OT3
Table Length
2030mm
Table Width (Without side rail)
540mm
Table Height (Without mattress)
600-1000mm
Trendelenburg/Reverse
25°/25°
Lateral Tilt (Left/Right)
20°/20°
Back Plate up/down
80°/40°
Head Board up/down
45°/90°
Leg Board down/extension (Detachable)
20°/90°/90°

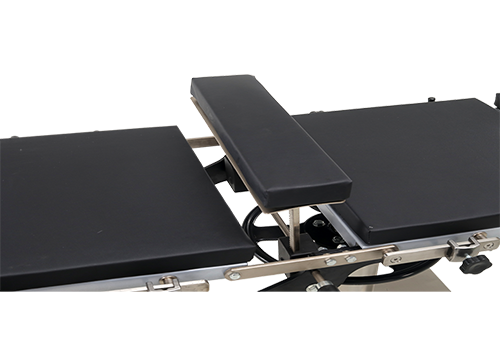

Kidney Bridge
120mm
Longitudinal Shift
350mm
Extreme Capacity
250kg
Power Supply
220V, 50Hz
