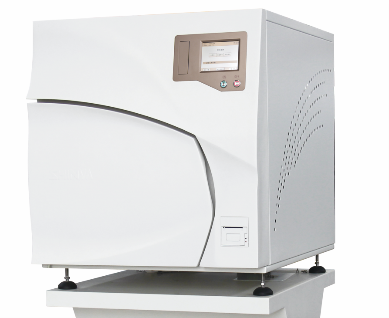

Galbino G-A1-1-PSL series Hydrogen Peroxide Plasma Sterilizer
is applicable to sterilize the medical instruments that are thermolabile or
non-moisture tight. It is not applicable to the sterilization of liquid, powder
or cotton fabrics.
Hydrogen
Peroxide Plasma Sterilizer is widely used in CSSD or other
medical institutions to sterilize wires and cables, optical glasses and glass
lenses, power equipment and batteries, endoscopes, catheters, non-metals and
other humidity-sensitive or heat-sensitive instruments.
Hydrogen Peroxide Plasma Sterilizer features:
◆ Low temperature sterilization of Hydrogen Peroxide Plasma Sterilizer
The sterilization temperature is 50±5 ℃ which is much lower than steam sterilization. It is dry sterilization that has no harm on instrument, so it extends the device service life.
◆ Safe and environment friendly of Hydrogen Peroxide Plasma Sterilizer
The matter after sterilization is water and oxygen molecule that have no toxic harm to staff or patient, and there is no need for drainage or air exhausting. High efficient H₂O₂ filter is installed in the exhausting outlet to guarantee no H₂O₂ pollution to the environment.
◆ Time-saving and cost-efficient of Hydrogen Peroxide Plasma Sterilizer
Rectangular chamber has greater capacity, high efficiency and short sterilizing cycle (50mins). The sterilized articles can be used directly without extra processing. It can increase the instrument turnover and decrease the storage of precious instrument to cut cost indirectly.
◆ Convenient
Only power supply is needed for installation. The system adopts man-machine control interface with intelligent program design. Equipped with foot switch (alternative) and integrated biological incubator (alternative)
◆ Multiple models of Hydrogen Peroxide Plasma Sterilizer
The door structure of the sterilizer is customizable (single or double door). To meet pharmaceutical factory needs, chamber material can be stainless steel.
◆ Reliable sterilization of Hydrogen Peroxide Plasma Sterilizer
The chamber adopts alloy material which has good thermal conductivity to guarantee a stable temperature in the chamber. The purification system makes the H₂O₂ diffuses uniformly. The low temperature storage system provides a stable concentration of H₂O₂.
◆ Safe sealing door of Hydrogen Peroxide Plasma Sterilizer
The sterilizer adopts mandril-driving auto overhead door with reliable sealing function and safe lock device to guarantee personal safety.
◆ Advanced configuration Hydrogen Peroxide Plasma Sterilizer
The vacuum pump, controller, pressure transmitter and other key components are world famous brand. The sterilizer equipped with multiple programs and bar code identification system (alternative)
◆ Reassuring of Hydrogen Peroxide Plasma Sterilizer
Galbino provide comprehensive operation training materials to key components maintenance intelligent reminding system for your convenience.
Alternative configuration:
◆ Integrated biological incubator
The biological incubator will timely display temperature and incubate time. It equipped with independent control system that could work in the case of the sterilizer switched off.
◆ Foot switch
Simply kick the switch to open or close the door.
◆ Metallic sterilizing container
To improve sterilizing result, we provide various sterilizing container for different kinds of instruments and operation kits.
◆ Auto elevating trolley
The trolley equipped with auto elevating platform, chargeable lithium battery. The convenient memory function could record three different positions.
Hydrogen Peroxide Plasma Sterilizer Technical Data
|
|
Hydrogen Peroxide Plasma Sterilizer Model
|
G-A1-1-PSLT64
(STC)
|
G-A1-1-PSLT135
(SC/DC)
|
G-A1-1-PSLT135
(SCB/DCB)
|
G-A1-1-PSLT225
(SC/DC)
|
G-A1-1-PSLT225
(SCB/DCB)
|
|
Chamber dimensions
|
650x380x260
|
750x450x400
|
750x450x400
|
1250x450x400
|
1250x450x400
|
|
Volume (L)
|
64
|
135
|
135
|
225
|
225
|
|
Overall dimensions (L*W*H) mm
|
850x725x750
|
990x760x1600
|
990x760x1600
|
1460x760x1600
|
1460x760x1600
|
|
Weight (kg)
|
200
|
400
|
400
|
500
|
500
|
|
Power supply
|
220V 50/60Hz
|
380V 50/60Hz
|
380V 50/60Hz
|
380V 50/60Hz
|
380V 50/60Hz
|
|
Input power (kVA)
|
3.5
|
3.8
|
3.8
|
4.7
|
4.7
|
|
Environment temperature
|
10~40
|
10~40
|
10~40
|
10~40
|
10~40
|
|
Minimum installation room (L*W) mm
|
1500x900
|
1500x900
|
1500x900
|
2000x1200
|
2000x1200
|
|
Minimum repair distance
|
1 meter for each side
|
1 meter for each side
|
1 meter for each side
|
1 meter for each side
|
1 meter for each side
|
|
Automatic lifting trolley of Hydrogen Peroxide Plasma Sterilizer
|
|
Order code of Hydrogen Peroxide Plasma Sterilizer
|
T-100
|
T-200
|
|
Overall dimensions
(L*W*H) mm
|
1150x780x1165
|
1650x780x1165
|
|
Suitable sterilizer
|
G-A1-1-PSLT135
|
G-A1-1-PSLT225
|
|
|
|
|
|
|
|
|
