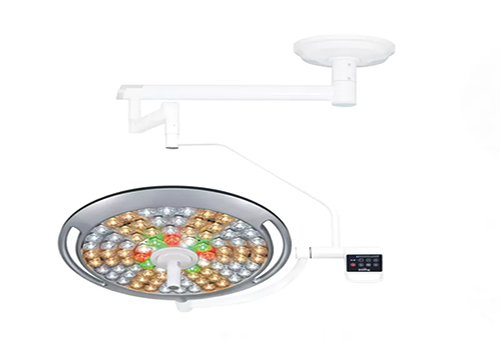

Surgery Lamp

Model: G-D1-4-SL7

Function: Surgery Lamp

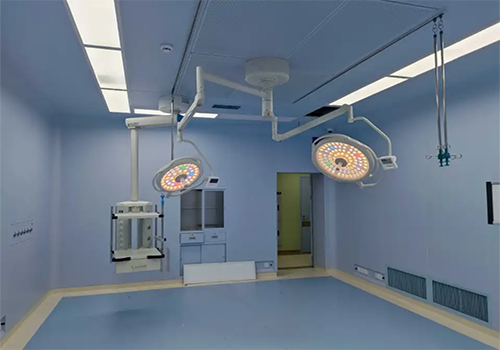

The LED shadowless Surgery Lamp is suitable for various operation needs. It is a modem ideal surgical lighting equipment operating room and purify the operating room.

Surgery Lamp features:

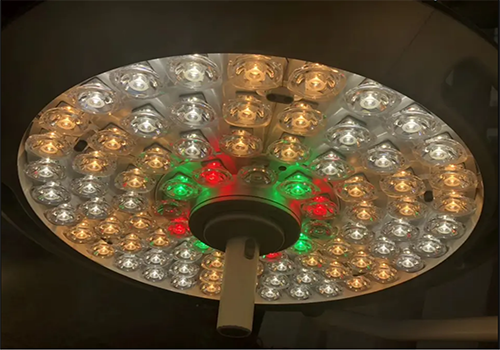

- Adopt imported LED cold light source.

- Nano coating of heat sink has created an excellent heat dissipation effect.

- Intelligent touch screen.

- Removable handle cover, facilitate cleaning and sanitation.

- Titanium alloy balance arm, no welding, never rust.

- Imported spring arm, lift up and down, light and flexible.

- Adjustable color temperature, with R9 (red) and R11 (green) auxiliary lighting function.

- With endoscopy surgery auxiliary lighting function.

- Light focus size adjusted electrically.

Surgery Lamp Technical Data

Surgery Lamp Model


Illumination at 1m (lux): 160,000

Illumination at 1m on Endo mode (lux): 15,000

D50 (mm): 110±35 electrically adjusted

Light filed diameter D10(mm): 180±40 electrically adjusted

Depth of L1+L2 illumination (cm): 150

Color rendering index (Ra): 100≥Ra≥85

Red color rending index R9: ≥97

Optional color temperature (K): 6700 ≥ Tc ≥ 3,000K

Number of LEDs: 84

Average bulb life (hours): 50,000

Heat-to-light ratio(mW/m2lx): <6

Green color rending index R11: ≥97

Input power (VA): 150W

Power supply: 110-240V

Ceiling height for installation(cm): 270-320
