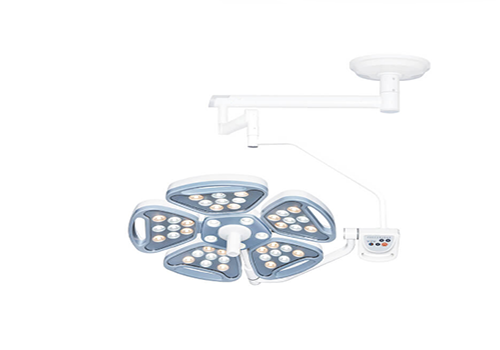

Operating Lamp

Model: G-D1-4-SL9
Function: Shadowless Operating Lamp

Galbino Operating Lamp is suitable for various operation needs. It is a modern ideal surgical lighting equipment operating room and purify the operating room.

Operating Lamp features:

- Adopt imported LED cold light source.

- Nano coating of heat sink has created an excellent heat dissipation effect.

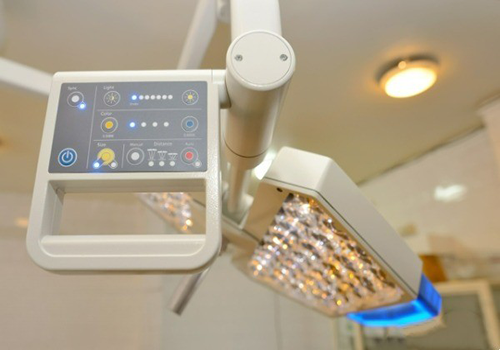

- Intelligent touch screen, with adjustable color temperature.

- Titanium alloy balance arm, no welding, never rust.

- Imported spring arm, lift up and down, light and flexible.

- Minimally invasive lighting and R9 function.

Technical Data



Illumination at 1m(lux): 80,000~160,000

Light field diameter at 1m (cm): 10-28

D10 (mm): 180±40

Diameter of spot D50 (mm): 110±35

Color rendering index (Ra): 100≥Ra≥85

Optional color temperature (K): (3,500-4,500) ±500

Endo model (lux): 10,000

Number of LED bulbs: 45

Average bulb life (hours): 50,000

Heat-to-light ratio (mW/m2lx): <6

Working distance (cm): 70-140

Max. power consumption (VA): 90
